含气饮料灌装机

  • Automatic carbonated filing machine
Automatic carbonated filing machine

Automatic carbonated filing machine

  • Warranty: 2 years
  • Capacity: 3000BPH
  • Certification:CE,BV,ISO,SGS
  • Material: SUS304/316
  • 产品描述:Automatic carbonated filing machine
  • 在线订购

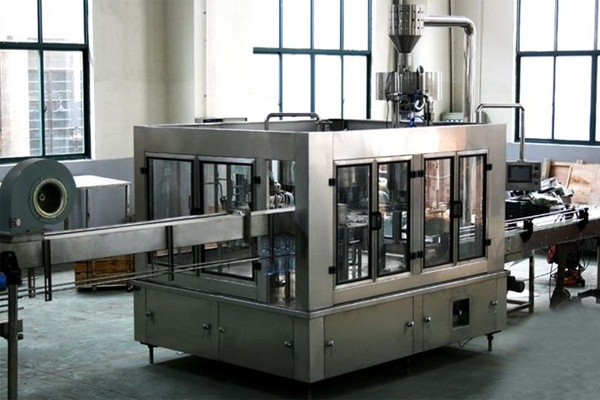

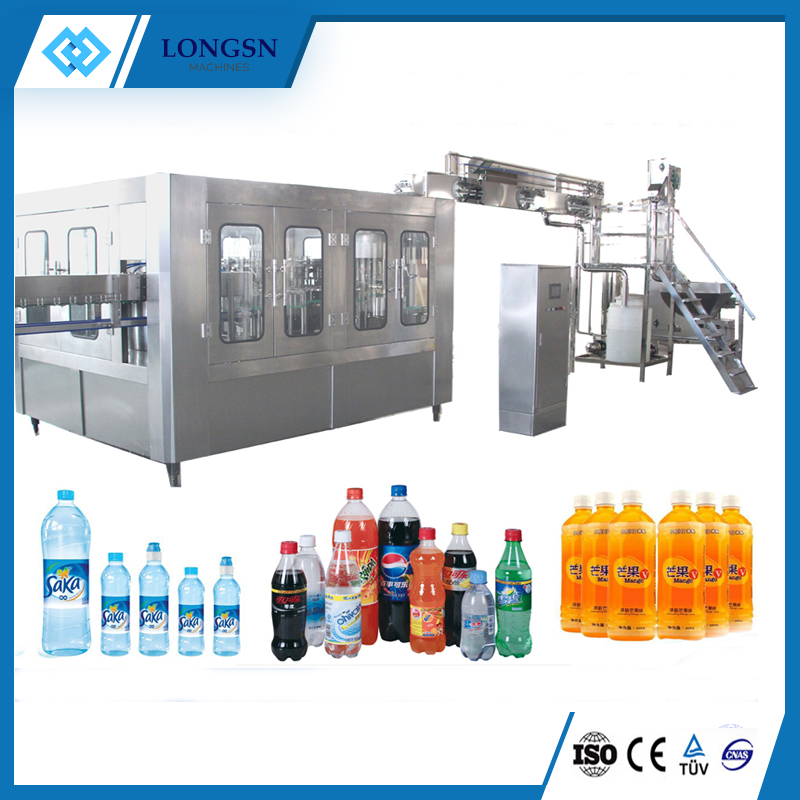

Automatic carbonated filing machine



Simple transmission system: Good rigid structure, easy wash and cleaning through using the integrated bedplate. As adopting the suspended neck-holding transmission technology and lubrication system the whole machine has huge space to transmit and repair.

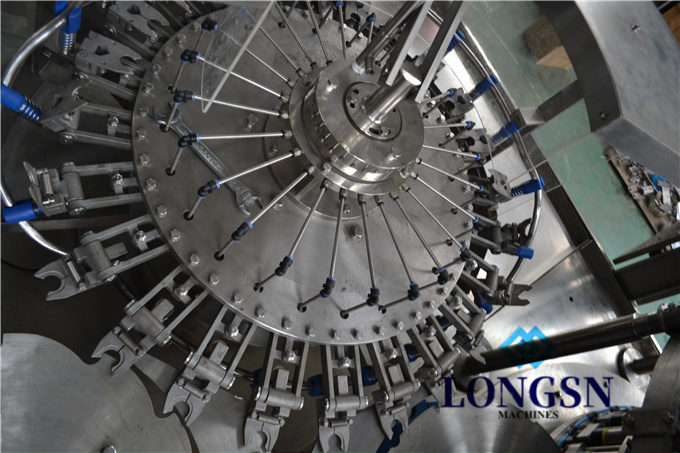

Bottle-washing machine with the spring structure: When empty bottles are automatically rotated in a 180° Semi-circle on the track, it washes the bottle inside in a complete and efficient way.

Accurate position alignment during filling process: Fastening the bottleneck during filling process and function of centering bell both guarantee the accurate sealing between bottleneck and filling tap. Leakage resulted from inclined bottles with angles in the bottom-based way is avoided. Material loss is truly reduced.

Accurate control in liquid level: Liquid level in the bottle is measured by liquid-level testing device with a probe. Consistent liquid level in the bottle during filling process is maintained through automatic control of variable signal.

Accurate speed adjustment: Speed adjustment is accurate and stable during launch and producing processes by using advanced frequency converter. Filling speed is digitally displayed. PC program control is used in the complete machine with a high automatic level.
Healthy structure: Quality stainless steel is used in all parts that contact beverage.

Advanced cap-tightener structure: Magnetic force is used in cap-tightener. Torque is adjusted in line with various caps, which is suitable for all kinds of plastic caps. Tooth profile device is used in choosing caps. Checking device is set at the bottom slide. We guarantee no inverse caps.

Change bottles in a swift and convenient way: Quick-opening structure is used, making it swift and convenient in changing bottles, which is suitable for all kinds of PET bottles.


Model

DCGF14-12-5

DCGF18-18-6

DCGF24-24-8

DCGF32-32-10

DCGF40-40-12

Washing Heads

14

18

24

32

40

Filling Heads

12

18

24

32

40

Caping Heads

5

6

8

10

12

Capacity(b/h)

3000

4000

6000

8000

12000

Filling Precision

≤+5mm

≤+5mm

≤+5mm

≤+5mm

≤+5mm

Power(Kw)

2.2

3.75

4.8

5.5

6.3

Wight Kg

2500

3500

4800

5600

6500

Size(mm)

2250x1700x2300

2400x1960x2300

3010x2180x2400

4000x2250x2500

4200x3000x3150


What service can offer you ?

1.  24 hours for engineer response (all services part 5days in customer hand by Intl' courier).

2.  Two Years guarantee

3.  Your business relationship with us will be confidential to any third party.

4.  Good after-sle service offered, please get back to us if you got any questions.


You may have questions as follow :

1. How about the spare parts?

We will send one year enough easy broken spare parts together with the machines, shipping together.During the warranty time, we will supply the spare parts, and the we will responsible the delivery charge.

2. How long for installation?

According your machines order, we will send one or two experienced engineers to your factory to help installation and training. It will take about 7 days to 15 days.

3.  How to install my machine when it is arrives? How much the installation cost?

We will send our engineers to your factory to help install the machines and train your staff how to operate the machines.Customers pay round - air tickets, accommodation and USD100 per day per person.

4.  When can I get my machines after I paid?

Normally production time is around 35-75 days, the exactly depend on what kinds of machine you ordered. The shipping time is based on your destination port.

5.   What is your guarantee or the warranty of the quality if we buy machine from you?

We offer high quality machines to you with 2 year guarantee with 2 years free spare parts and supply life-long technical support.

6.  Are you a trading company or manufacturer?

We are a manufacturer, we supply the factory prices goods and with good quality, welcome to visit!
