空瓶打包机

  • 自动空瓶打包机
自动空瓶打包机

自动空瓶打包机

  • warranty: 2 years
  • Suitable: plastic bottles
  • Speed: 0-8000BPH
  • Control: touch screen+PLC
  • 产品描述:Automatic empty bottle bagging packing machine
  • 在线订购

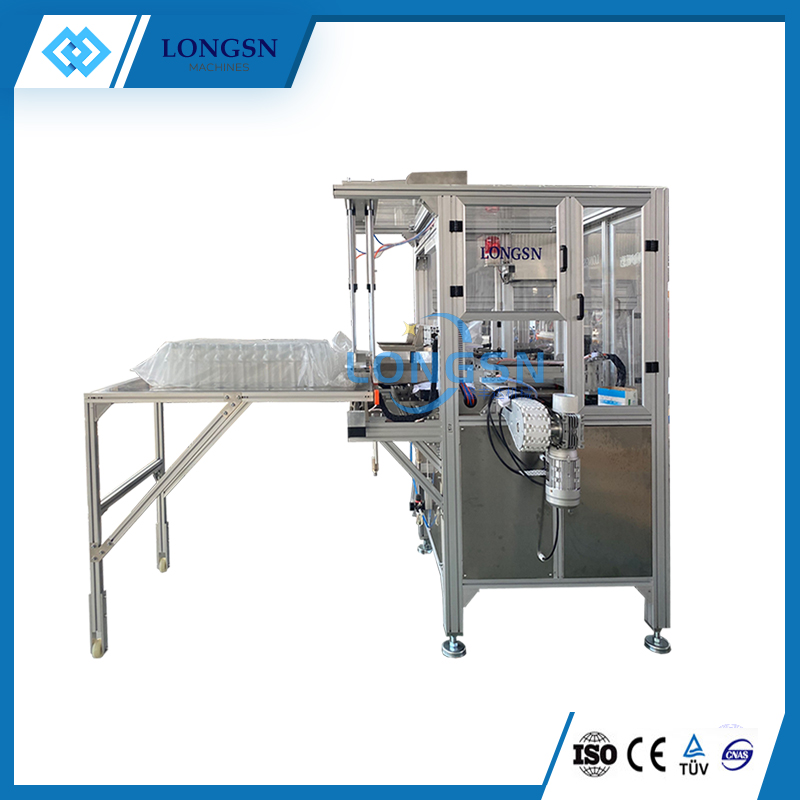

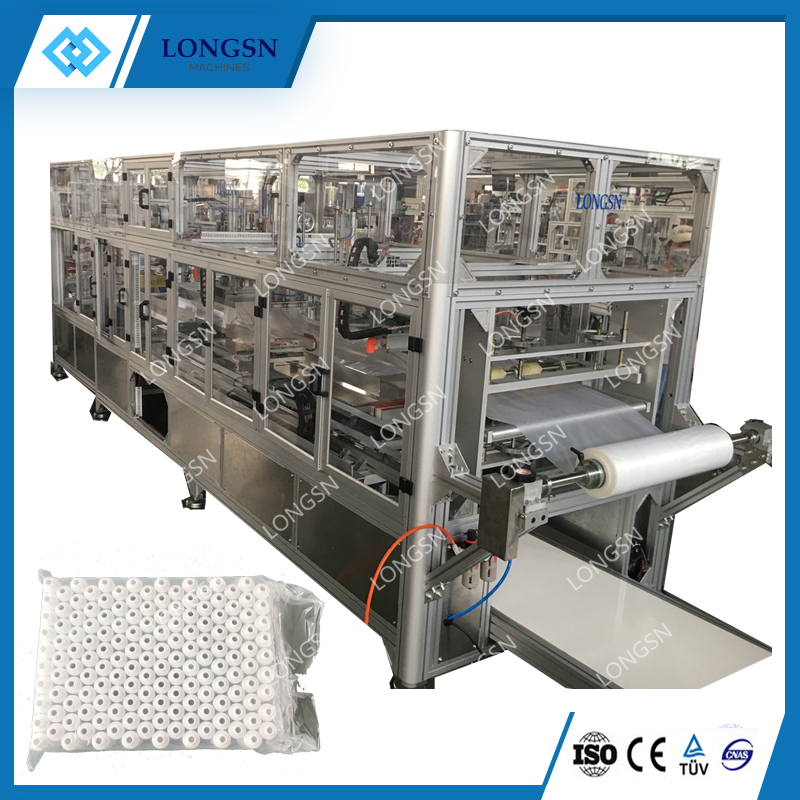

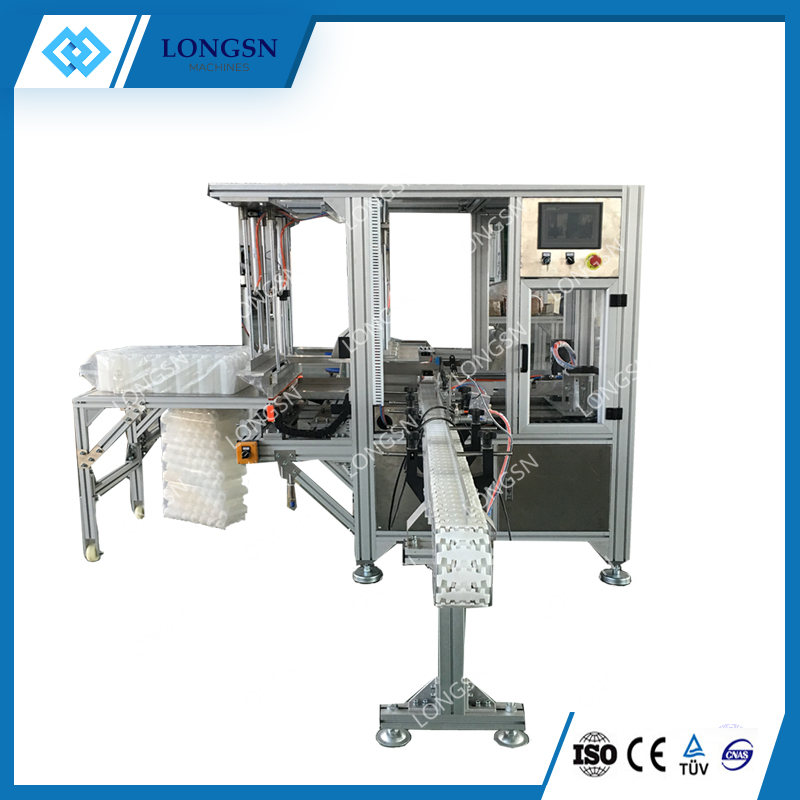

The automatic bagging machine is designed to pack empty plastic containers into prepared plastic bags. The packing speed can be as much as 8,000 bottles per hour, which can improve the productivity greatly and reducing labor cost at the same time. This machine can bag plastic containers ranging from 20ml to 5L. It can be in line integrated with other bottle making equipments such as blow molding machine and labeling machine, fulfilling a full automatic production line for plastic containers.
Features

High speed,high production capacity;

Big adjustable range,suitable for many products;

Wide application scope,can be connected with other machines,also can be used as a single machine;

Servo motor, Festo cylinder,SIEMENS PLC control and frequency converter

Technical Parameters:

Item Specifications Remarks
Container requirements 50ml-5L,
Ranging from 20 ml to 5L;

Packing bag size Length: 600 to 1350 mm; Width: 300 to 900 mm
Conveyor length Standard conveyor: L*W 2200mm*114.3mm Can be customized.
Conveyor height 850±50 mm Can be customized.
Air pressure 6-8 Bar Supplied by the purchaser
Power consumption 0.5KW
Output 3,000 to 4,000 per hour for 500 ml bottle



Electric appliance of our machine (can be adjusted)

1 Main electronic parts SIEMENS/JAPAN
2 Electric protection switch SIEMENS/JAPAN
3 Circuit breaker SIEMENS/JAPAN
4 Transducer MITSUBISHI/JAPAN
5 Photo electricity switch AUTONICS/KOREA
6 Pressuresensor SMC/JAPAN
7

Motor

SIEMENS/JAPAN
