吹瓶机

  • 200 500 1000ml hdpe pp pehd pvc milk yogurt bottle container extrusion blowing blow moulding molding machine price
200 500 1000ml hdpe pp pehd pvc milk yogurt bottle container extrusion blowing blow moulding molding machine price

200 500 1000ml hdpe pp pehd pvc milk yogurt bottle container extrusion blowing blow moulding molding machine price

  • Warranty :2 years
  • Control:PLC+Touch screen
  • Suitable bottle:100-2000ml Bottle
  • Material:Hdpe,PE,PP,PV,PVC,PA
  • 产品描述:Extrusion blow molding machine,plastic blowing machines,blow molding machine,plastic bottle blow molding machine,hdpe blowing machine,automatic bottle blowing machine price,plastic bottle blowing mach
  • 在线订购

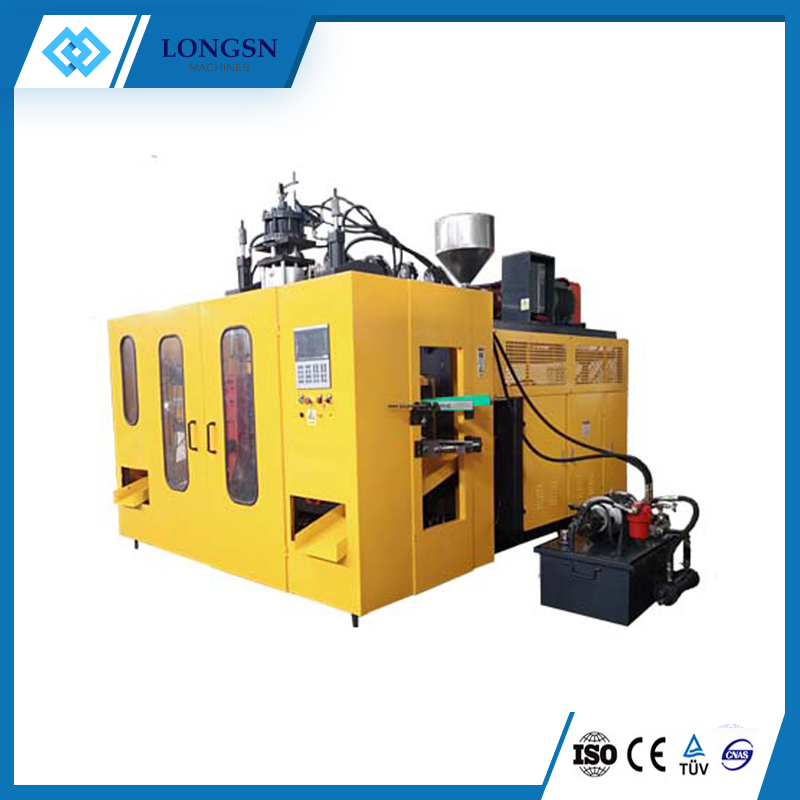

Extrusion blow molding machine is used to produce all kinds of the hollow plastic containers for foods, toys, beverages, medicines,chemical products, pesticides&detergents, water bottles,milk bottles,medical bottles,oil bottles,plastic balls,cosmetic bottles,lubricant bottles,plastic containers. The machines are low

investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and other benefit.

Machine Paramenters

Specifications LN65series
Material PEPP,HDPE,LDPE….
Screw RPM(50HZ) R/min 10-70
Extrusion capacity per hour(PE) Kg/H 60
Max container capacity L 6L
Number of die set 1
Output(dry Cycle) pc/hr 500-600
Machine DimensionL×W×H M 3.39x1.75x2.4
Total weigh ton 5
Clamping Unit LN65series
Clamping force KN 68
Platen opening stroke mm 420
Platen size mm 320x410
Clamping stoke mm 150-500
Dry cycle time s 5
Power LN65series
Fan power for screw KW 0.54
Air pressure Mpa 0.8
Air consumption m³/min 0.4
Cooling water pressure Mpa 0.2-0.3
Cooling water consumption L/Min 50
Average energy consumption KW 25.5
Extruder unit LN65series
Screw diameter mm 65
Screw L/D ratio L/D 24
Extrusion capacity per hour(PE) Kg/hr 60
Number of  heating zone zone 3
Extruder  heating  power KW 13.8
Extrusion motor power KW 18.5
Power of die heating zone KW 3
Hydraulic motor power KW 7.5
Total power KW 45.5
Die LN65series
Double head central distance mm 160
Accumulator capacity L 4.6
