全自动吹瓶机

  • Automatic PET bottle blow machine

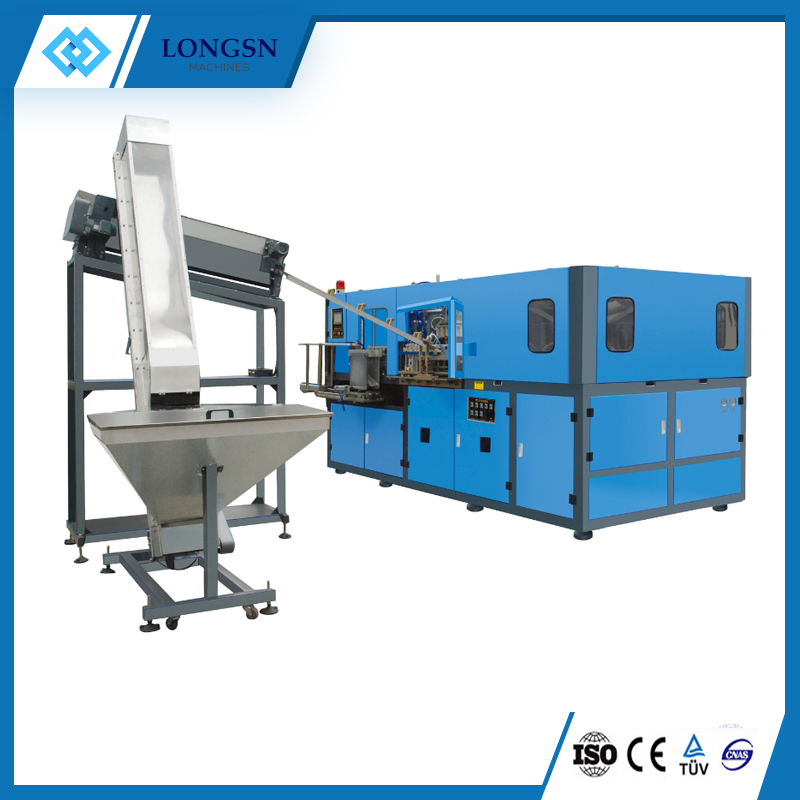

Automatic PET bottle blow machine

Automatic PET bottle blow machine

  • Warranty: 2 years
  • Capacity: 2000BPH
  • Certification:CE,BV,ISO,SGS
  • Control: Mitsubishi PLC
  • 产品描述:Automatic PET bottle blow machine
  • 在线订购

Automatic PET bottle blow machine


A. Flow chart of production:
Scrambler Lining the performs-- Preforms be loaded by transfer-- Heated by lamps-- Blowing station(sealing-stretching-blowing)-- Bottles be delivered by transfer arm-- Finished goods.


B.Main Features:

1. Stable performance with advanced PLC.

2. Automatic preform conveyer to save human cost.
3. Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.
4. High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.
5. High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.
6. Introduce the FESTO air cylinder to avoid contamination and noise.
7. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
8. Strong clamping force with high pressure and double crank links to lock the mould.
9. Two ways of operating: Automatic and manual.
10. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
11. Contamination is avoided for the bottle body.
12. Ideal effect of the chilling with the chilling system.
13. Easy installation and starting
14. Safereliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.


C.Technical Specification:

Automatic pet stretch blow molding machine

Category

Item

Unit

LN-A4

Product specification

Max volume

L

2

Output

pcs

3500-4000

Body diameter

mm

107

Bottle height

mm

350

Neck diameter

mm

12-38

Mold

Cavity

cavity

2

Clamping stroke

mm

200

Bottom Moving stroke

mm

50

Power

Votage standard

--

220/380V50HZ
3 phase

Installation Heating Power

kw

27

Max. heating power

kw

24

Actual use power

kw

19

Air resource

Work pressure

kg/cm2

7-9

High compressor Air consumption

Ltr/min

1500

Blow bottle pressure

kg/cm2

25-35

Low compressor Air consumption

Ltr/min

1000

Machine specification

The Main Machine(L×W×H)

mm

5250*2164*2100

Machine weight

kg

4600

Preform Feeder(L×W×H)

mm

3010*2000*2600





What service can offer you ?

1.  24 hours for engineer response (all services part 5days in customer hand by Intl' courier).

2.  Two Years guarantee

3.  Your business relationship with us will be confidential to any third party.

4.  Good after-sle service offered, please get back to us if you got any questions.


You may have questions as follow :

1. How about the spare parts?

We will send one year enough easy broken spare parts together with the machines, shipping together.During the warranty time, we will supply the spare parts, and the we will responsible the delivery charge.

2. How long for installation?

According your machines order, we will send one or two experienced engineers to your factory to help installation and training. It will take about 7 days to 15 days.

3.  How to install my machine when it is arrives? How much the installation cost?

We will send our engineers to your factory to help install the machines and train your staff how to operate the machines.Customers pay round - air tickets, accommodation and USD100 per day per person.

4.  When can I get my machines after I paid?

Normally production time is around 35-75 days, the exactly depend on what kinds of machine you ordered. The shipping time is based on your destination port.

5.   What is your guarantee or the warranty of the quality if we buy machine from you?

We offer high quality machines to you with 2 year guarantee with 2 years free spare parts and supply life-long technical support.

6.  Are you a trading company or manufacturer?

We are a manufacturer, we supply the factory prices goods and with good quality, welcome to visit!
